HGK-40 Pipe Automic Adjustable Welding Rolls With 2*1.5KW Motor For Pressure Vessel Welding

Application:

1Cylindrical tank’s welding, polishing, rubber lining, assembling ,etc

2Match up with other tools for welding or assembling for cone and section equality solid of revolution

3Customized special welding rotators according to client’s requirements

4Wind power fabrication

5Chemical & fuel storage tank fabrication

6Any heavy cylindrical job

Product Parameter:

Type	Max loading (kg)	Vessel diameter(mm)	Dia. and width of the wheel(mm)		Roller linear velocity(m/h) 6-60	Power of motor(kw)
Type	Max loading (kg)	Vessel diameter(mm)	Rubber rollers	Metal rollers		Power of motor(kw)
HGK-5	5,000	Φ250-2300	Φ250×100	2×Φ240×20		2X0.37
HGK-10	10,000	Φ320-2800	Φ300×120	2×Φ290×25		2X0.55
HGK-20	20,000	Φ500-3500	Φ350×120	2×Φ340×30		2X0.75
HGK-40	40,000	Φ600-4200	Φ400×120	2×Φ390×40		2X1.5
HGK-60	60,000	Φ750-4800	Φ450×120	2×Φ440×50		2X2.2
HGK-80	80,000	Φ850-5000	Φ500×120	2×Φ490×60		2X3
HGK-100	100,000	Φ1000-5500	Φ500×120	2×Φ490×80		2X3
HGK-150	150,000	Φ1000-6000	/	Φ620×220		2X4
HGK-250	250,000	Φ1800-7500	/	Φ660×260		2X5.5
HGK-500	500,000	Φ1800-8000	/	Φ750×400		2X7.5

Product Description:

Welding rotator is a kind of advanced welding equipment ,which is be researched and manufactured absorbing domestic international advanced equipment.Drive rotator is through AC variable frequency motor separate driver reducer then through gear transmission unit to driver the roller to rotation,it’s realize driver reduer used gear box structure type ensure that can drive the vessel to rotation,used is more reasonable, also with higher transmission precision, roller shelf life longer.

Features:

Our product anti creep function,Hydraulic lifting for fit up pipes,automatic traveling or Manual traveling on the rail.Each set of rotator normally consists of one power unit, one idler unit and one electrical control system.Several idler units can be set.Schneider / Mitsubishi invertor.Remote box with 10mtrs control cable.CE Approved.We also can design the customize various types of the welding rotator in accordance with the customers requiremt.Imported frequency conversion speed regulator, which features in wide regulation width, big starting power and high adjustable precision.

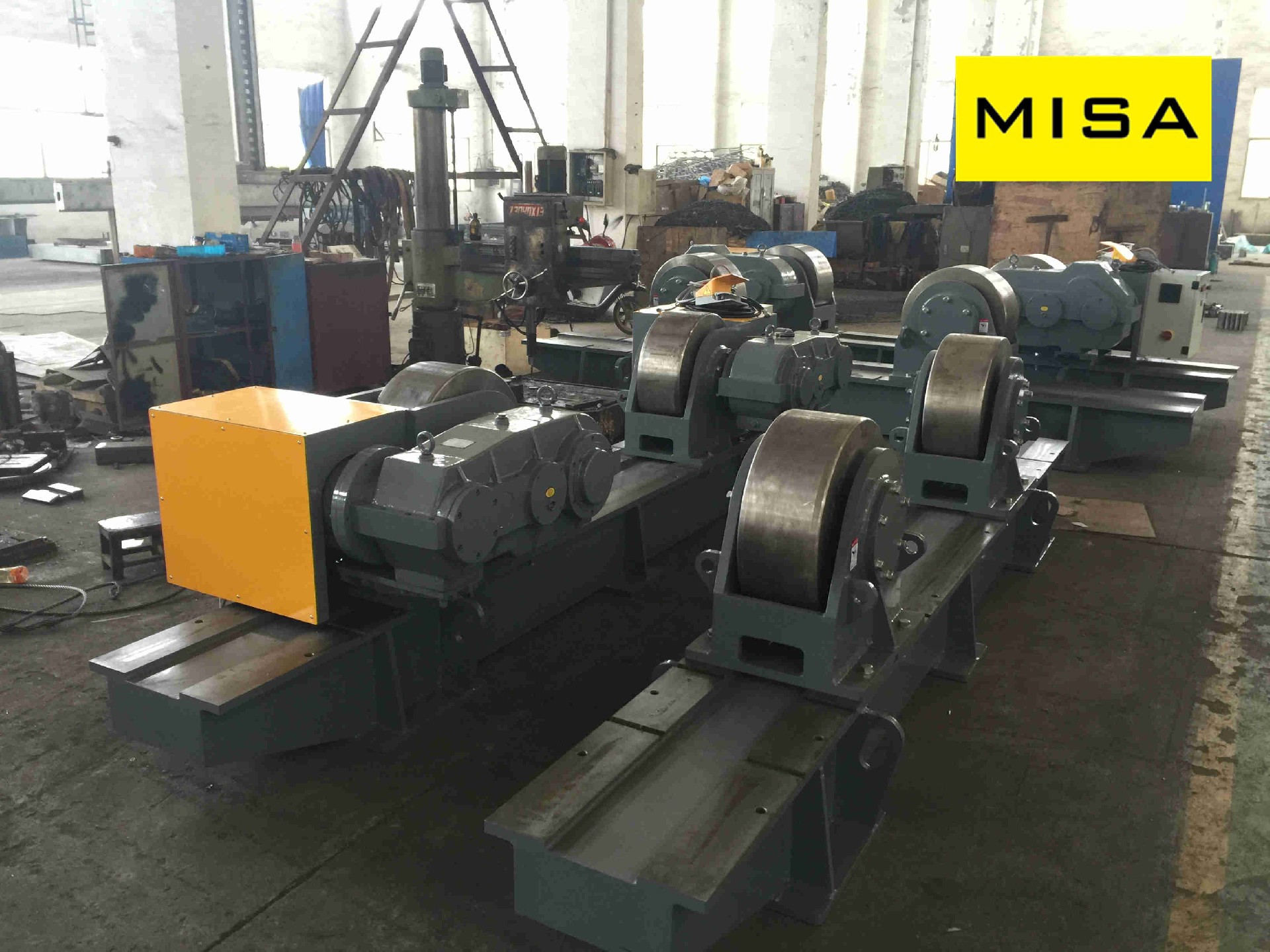

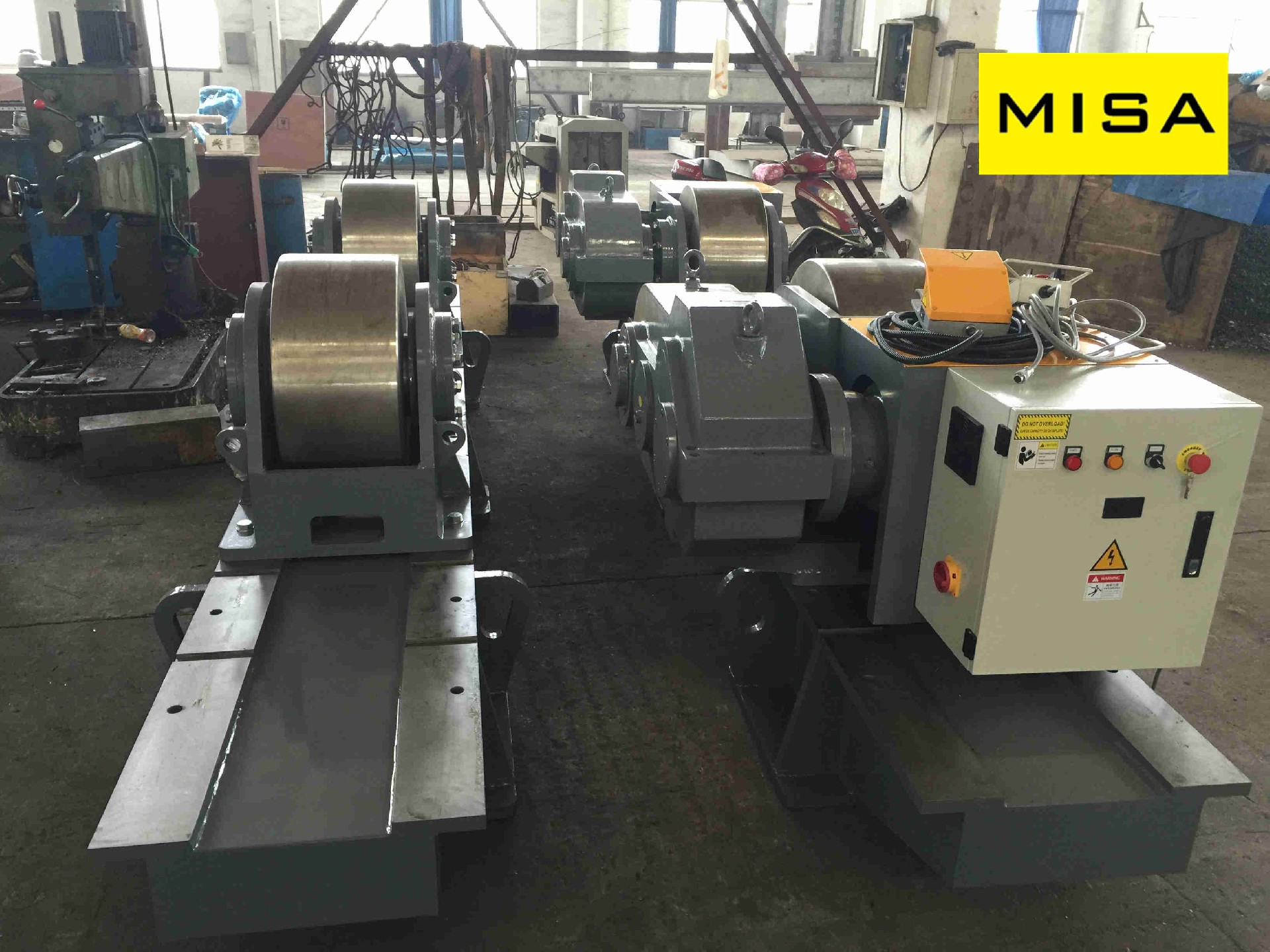

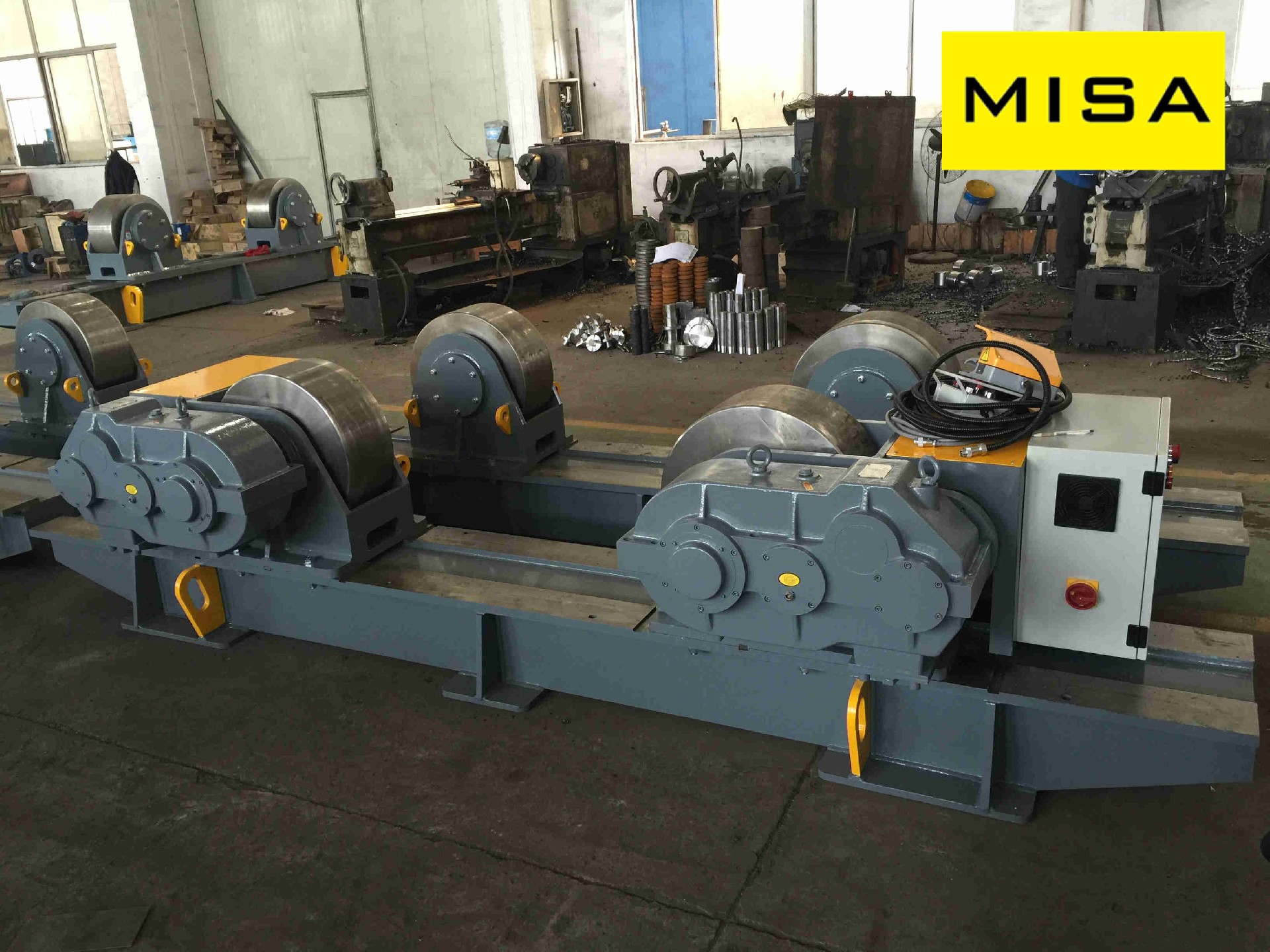

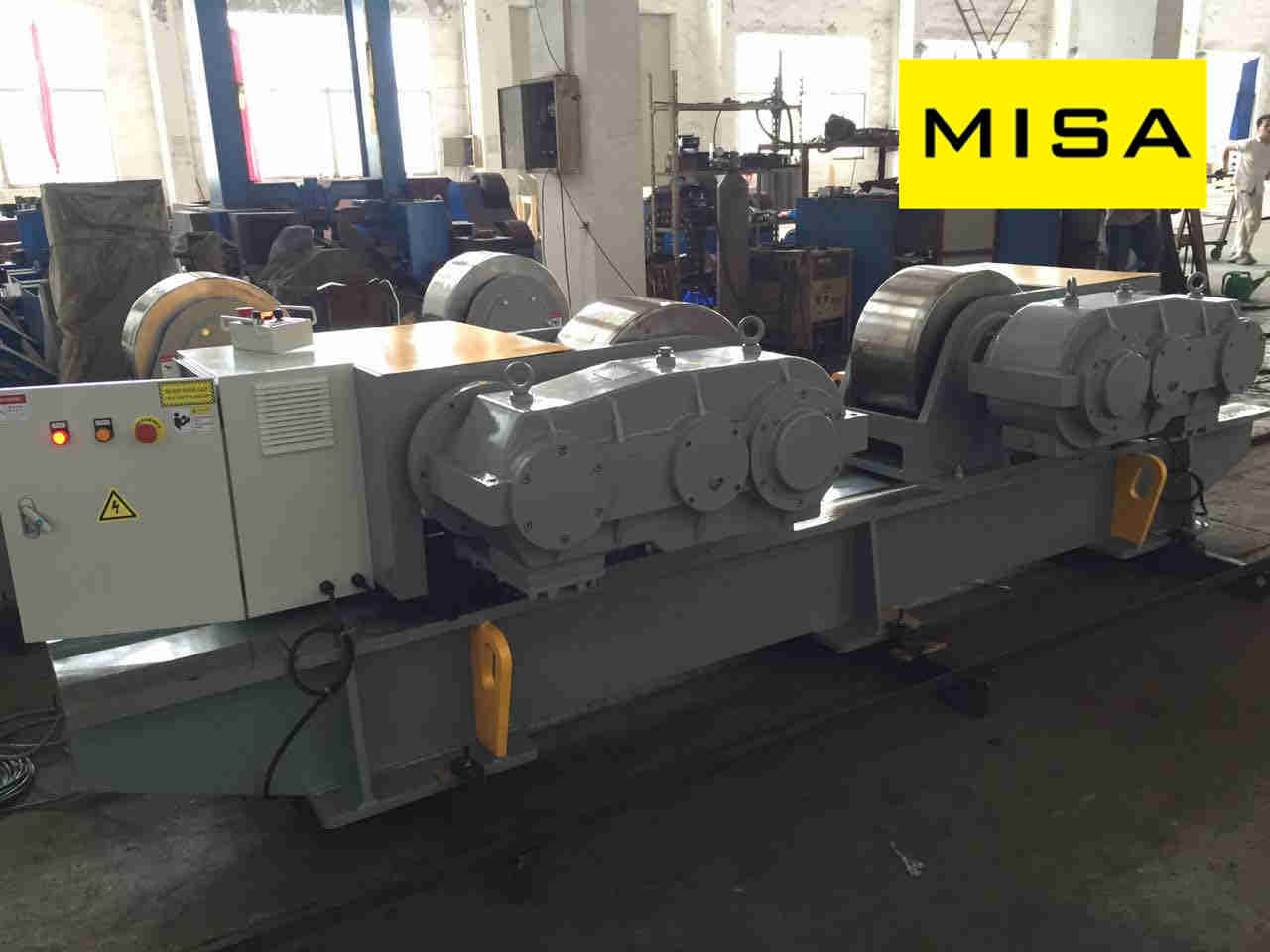

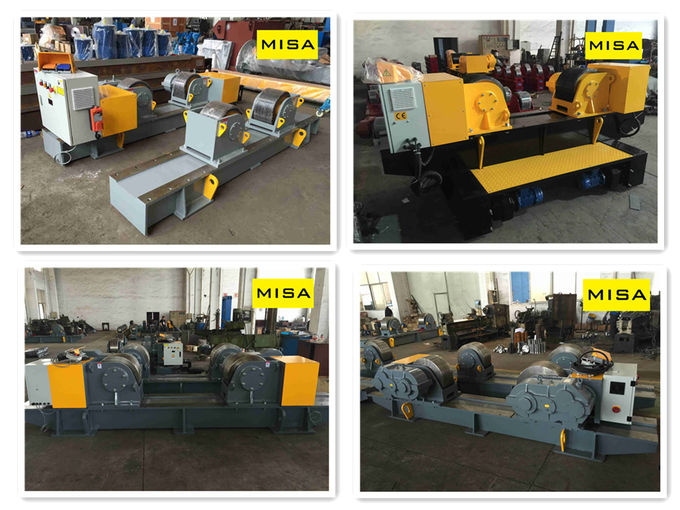

Detailed Photos:

Brand Using:

﹡Inverter is made in USA Danfoss / Taiwan Delta /Japan Yaskawa

﹡Motor Brand is UK Invertek /Taiwan Qinwei / Siemens

﹡Element is made by Schneider /Siemens

﹡Reducer is made by Kaibo/Guomao

﹡Wireless Control box is made by Taiwan by Yuding

﹡Bearing is made by NTN / Harbin

Packing And Shippment:

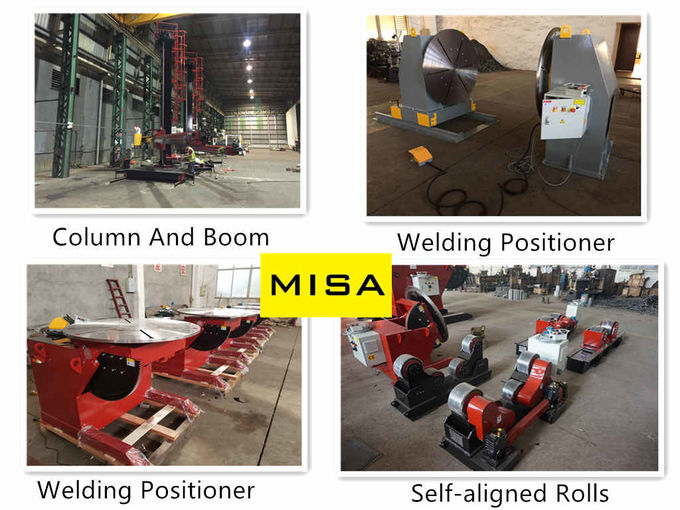

Related Products:
